Pre-engineered Steel Building with 50 Years Life Cycle, Quick Erection, and Cost Savings

Model Number : KXD-SSW1059

Window : Aluminum Alloy Window

MOQ : 200 Square Meters (MOQ)

Delivery Time : 30days

Color : Optional,Blue or as per your need

Price : US$50.00-100.00

Main Frame : Welded H-shape Steel Beam, Column

Certification : ISO, SGS, CE, BV

Payment Terms : T/T

Advantage : Lightweight

Certifications : ISO 9001, CE

Panel Thickness : 50mm, 75mm, 100mm

Supply Ability : 5000ton/Month

Windloadresistance : Up to 0.6 kN/m²

Packaging Details : pallet

Application Fields : workshop plant/warehouse/hangar

Brand Name : KXD

Corlor : Red, sea blue, white grey, etc.

Place of Origin : Qingdao

Contact Now

Prefabricated Steel Structure Building with Economical Design

Product Specifications

Model Number	KXD-SSB54
Construction Period	60 Days
Life Cycle	50 Years
Warranty	30 Year Limited Warranty
Quality Standards	SGS / ISO / BV
Production Capacity	5000 ton/Month

What are Pre-engineered Steel Buildings?

Pre-engineered steel buildings are steel structures built over a structural concept of primary members, secondary members, roof and wall sheeting connected to each other and various other building components.

These buildings can be provided with different structural and non-structural additions such as skylights, wall lights, turbo vents, ridge ventilators, louvers, roof monitors, doors & windows, trusses, mezzanine floors, fascias, canopies, crane systems, insulation, etc., based on customer requirements. All steel buildings are custom designed to be lighter in weight and high in strength.

Pre-engineered Steel Building with 50 Years Life Cycle, Quick Erection, and Cost Savings

Applications

Industrial

Factories
Workshops
Warehouses
Cold Storages
Steel Mills
Assembly Plants

Commercial

Showrooms
Supermarkets
Offices
Shopping Centers
Exhibition Halls
Restaurants

Public & Others

Schools & Hospitals
Conference Halls
Laboratories
Museums & Stadiums
Farms
Aircraft Hangars

Key Advantages

Cost Savings

Price per square meter can be 25%-30% lower than conventional steel buildings. Site erection cost is low due to faster erection times and easier installation process.

Quick Erection

All steel components are fabricated at the factory and linked by bolts at the site. Erection process is fast, step by step, easy to install and requires simple equipment. 60% less construction time required compared with traditional R.C.C. buildings.

Flexibility

Pre-engineered steel buildings are flexible in design requirements, easy to expand in the future, and economical with low transportation costs.

Energy Efficiency

Pre-engineered buildings are environmentally friendly with CO2 reduction, energy efficiency, and recyclability.

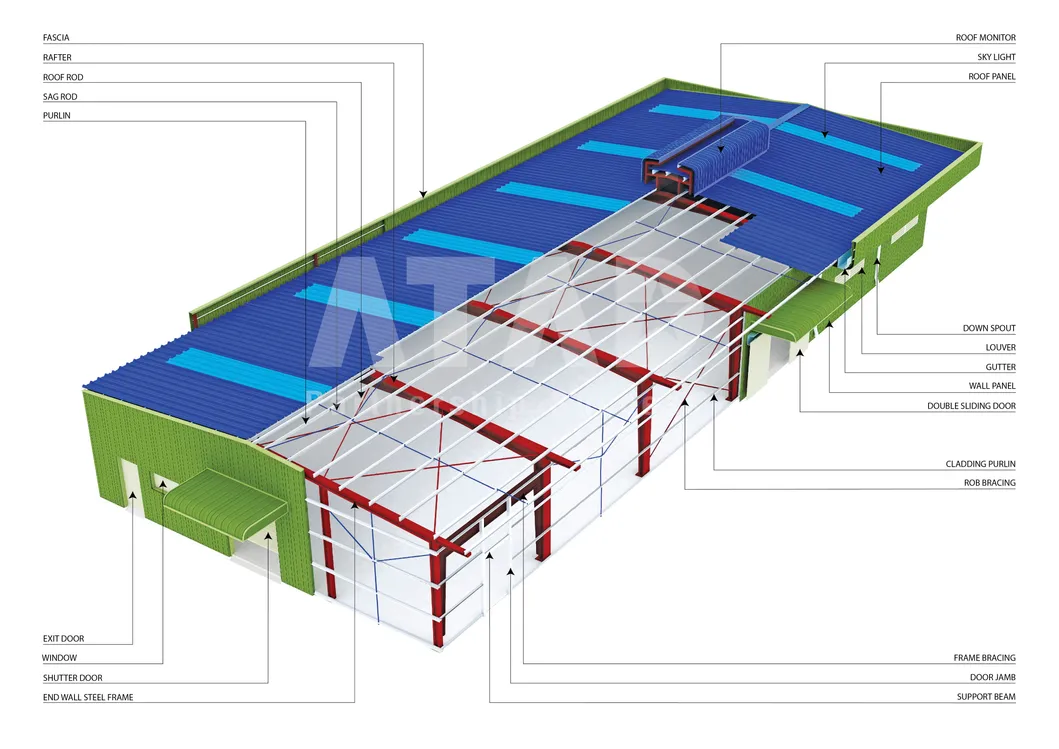

Building Components

Primary Members / Main Frames - Main load carrying and support members including columns, rafters
Secondary Members / Cold Formed Members - Purlins, girts, eave struts, wind bracing
Roof & Wall Panels - Standard steel panels 0.3-0.6mm thick with protective coatings
Accessories - Anchor bolts, fasteners, doors, windows, ventilators, insulation
Sandwich Panels - For enhanced insulation and structural performance

Manufacturing Process

Material Receiving & Preparation

Verification of materials, dimensional inspection, and preparation according to design specifications using CNC cutting equipment.

Fit-up & Assembly

Precision assembly of beams and connection details using H-section production lines with hydraulic positioning systems.

Welding & Grinding

Professional welding using submerged arc and MIG welding processes following GB50661-2011 standards, with post-weld grinding for quality finish.

Blasting & Surface Preparation

Automated blasting process achieving SA 2/2.5 surface preparation grade for optimal paint adhesion.

Painting & Finishing

Multi-coat painting system applied by airless spray with strict quality control of film thickness and surface conditions.

Quality Standards & Control

With 20-year warranty in the steel building industry, our company maintains strict quality standards. We have acquired ISO9001 and CE certificates and follow comprehensive quality control procedures including:

GB/T1591-2008/2018
GB/T11263-2010
GB/T 2518-2008
GB/T12754-2006
GB/T 1228-2006

Fillet Weld Quality Standards

Comprehensive regulations ensure the quality of fillet welds, meeting technical requirements and improving fabrication standardization.

Parent Metal Thickness (mm)	Minimum Fillet Weld Size
t ≤ 6	3 (5 for crane beam)
6	5
12	6
t > 20	8

H-Section Manufacturing Process

Complete manufacturing workflow ensuring precision and quality:

Steel plate cutting
H-section assembly
Automatic welding
H-section strengthening
Assembly
Manual welding
Shot blasting
Painting
Storage

Manufacturing Equipment

Equipment	Model	Application
Portable CNC Fire-cutting	CNCDG-1530	Steel plate cutting (5-100mm)
Straight flame cutting	DZCG-4000A	Flange & web plate cutting
CNC cutting machine	CNC-4000C	Irregular component cutting
Radial drilling machine	Z3050*16/1	Bolt-connection holes
H-section assembly	Z20B	H-type assembly
Automatic welding	LHA5ZB	Submerged arc welding
